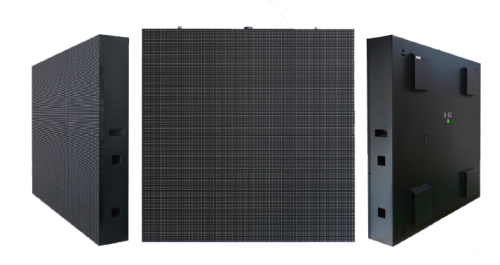

Outdoor Front Service LED Display

Hot Features

Easy Maintenance: Fast to install and quick to dismantle

High brightness：More than 6500nits

Low power consumption: 50-90Watts/pcs

Multi pixel pitches for options: 6.67mm/8mm/10mm (more pixel pitches are coming)

Long Warranty Period: 2years

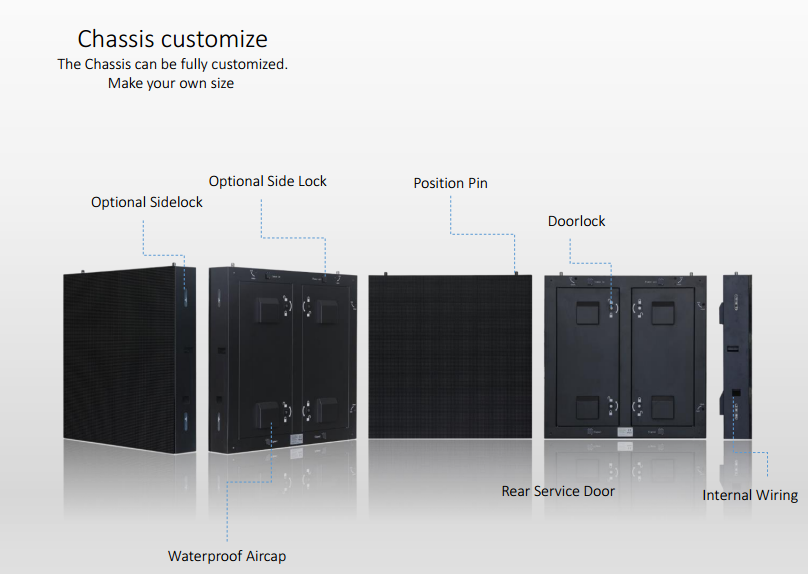

Front Service Advantages

1. Adaptive to different installation environment

2. Either front or rear service optional

3. Easy to maintenance and replacement

OWT urges all buyers to purchase patent license for the products and technologies they will be using.

Click Here：One World Patents summary

Parameter

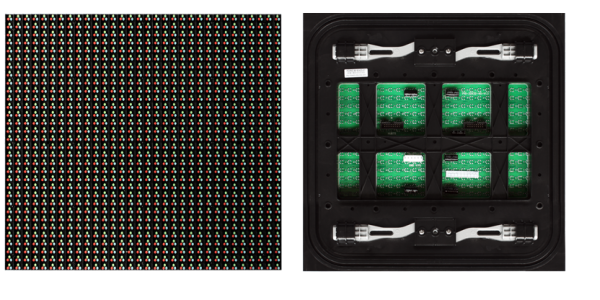

Outdoor SMD Front Service Series -Parameters 320mmx320mm module


Model	P6.67	P8	P10
Pixel Pitch	6.67 mm	8 mm	10 mm
LED Type	SMD2727	SMD3535	SMD3535
Configuration	1R1G1B	1R1G1B	1R1G1B
Module Size	320*320 mm	320*320 mm	320*320 mm
Pixel Density	22477 pixel/㎡	15625 pixel/㎡	10000 pixel/㎡
Refresh Rate	≥ 1920Hz	≥ 1920Hz	≥ 1920Hz
Gray Scale	16 Bit	16 Bit	16 Bit
Brightness	≥ 7000 cd/㎡	≥ 6500 cd/㎡	≥ 6500 cd/㎡
Scan Way	1/6	1/5	1/2
Frame Rate	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ
Viewing Angle	H：140°, V:140°	H：140°, V:140°	H:110°, V:55°
Cabinet Resolution	144*144 Dots	240*160 Dots	192*128 Dots
Material	Iron	Iron	Iron
Cabinet Size	960*960mm145mm	960*960mm145mm	960*960mm145mm
Cabinet Weight	98Kg	98Kg	98Kg
IP Rating	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54
Max.Power Consumption	720W/Panel	700W/Panel	630W/Panel
Avg.Power Consumption	480W/Panel	466W/Panel	420W/Panel
Control System	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar
Operation System	Windows/me/200NT/XP	Windows/me/200NT/XP	Windows/me/200NT/XP
Working-Temperature	‘-20℃~60℃	‘-20℃~60℃	‘-20℃~60℃
Working Humidity	10%~90% RH	10%~90% RH	10%~90% RH
Input Voltage	AC 110~220 V (±5%）	AC 110~220 V (±5%）	AC 110~220 V (±5%）
Blind spot rate	≤0.01%	≤0.01%	≤0.01%
MTBF	35000 Hour	35000 Hour	35000 Hour
Lifespan	100000 Hour	100000 Hour	100000 Hour
Certification	CCC,CE,RosH,ETL,UL	CCC,CE,RosH,ETL,UL	CCC,CE,RosH,ETL,UL

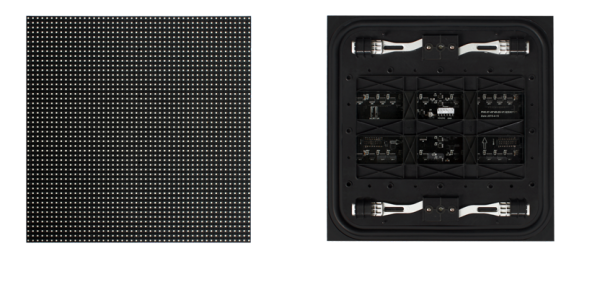

Outdoor DIP Front Service Series -Parameters 320mmx320mm module


Model	P10	P16	P16	P20	P20
Pixel Pitch	10 mm	16 mm	16 mm	20 mm	20 mm
LED Type	DIP346	DIP346	DIP346	DIP346	DIP346
Configuration	1R1G1B	2R1G1B	1R1G1B	2R1G1B	1R1G1B
Module Size	320*320 mm	320*320 mm	320*320 mm	320*320 mm	320*320 mm
Pixel Density	10000 pixel/㎡	3906 pixel/㎡	3906 pixel/㎡	2500 pixel/㎡	2500 pixel/㎡
Refresh Rate	≥ 1920Hz	≥ 1920Hz	≥ 1920Hz	≥ 1920Hz	≥ 1920Hz
Gray Scale	16 Bit	16 Bit	16 Bit	16 Bit	16 Bit
Brightness	≥ 7000 cd/㎡	≥ 9000 cd/㎡	≥ 9000 cd/㎡	≥7000cd/㎡	≥ 7000cd/㎡
Scan Way	1/4	1/2	1/2	Static State	Static State
Frame Rate	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ
Viewing Angle	H:110°, V:55°	H:110°, V:55°	H:110°, V:55°	H:110°, V:55°	H:110°, V:55°
Cabinet Resolution	96*96 Dots	60*60Dots	60*60Dots	48*48Dots	48*48Dots
Material	Iron	Iron	Iron	Iron	Iron
Cabinet Size	960*960mm145mm	960*960mm145mm	960*960mm145mm	960*960mm145mm	960*960mm145mm
Cabinet Weight	48Kg	48Kg	48Kg	48Kg	48Kg
IP Rating	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54
Max.Power Consumption	540W/Pane	522W/Panel	522W/Panel	450W/Panel	450W/Panel
Avg.Power Consumption	360W/Panel	348W/Panel	348W/Panel	300W/Panel	300W/Panel
Control System	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar
Operation System	Windows/me/200NT/XP	Windows/me/200NT/XP	Windows/me/200NT/XP	Windows/me/200NT/XP	Windows/me/200NT/XP
Working-Temperature	‘-20℃~60℃	‘-20℃~60℃	‘-20℃~60℃	‘-20℃~60℃	‘-20℃~60℃
Working Humidity	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH
Input Voltage	AC 110~220 V (±5%）	AC 110~220 V (±5%）	AC 110~220 V (±5%）	AC 110~220 V (±5%）	AC 110~220 V (±5%）
Blind spot rate	≤0.01%	≤0.01%	≤0.01%	≤0.01%	≤0.01%
MTBF	35000 Hour	35000 Hour	35000 Hour	35000 Hour	35000 Hour
Lifespan	100000 Hour	100000 Hour	100000 Hour	100000 Hour	100000 Hour
Certification	CCC,CE,RosH,ETL,UL	CCC,CE,RosH,ETL,UL	CCC,CE,RosH,ETL,UL	CCC,CE,RosH,ETL,UL	CCC,CE,RosH,ETL,UL
